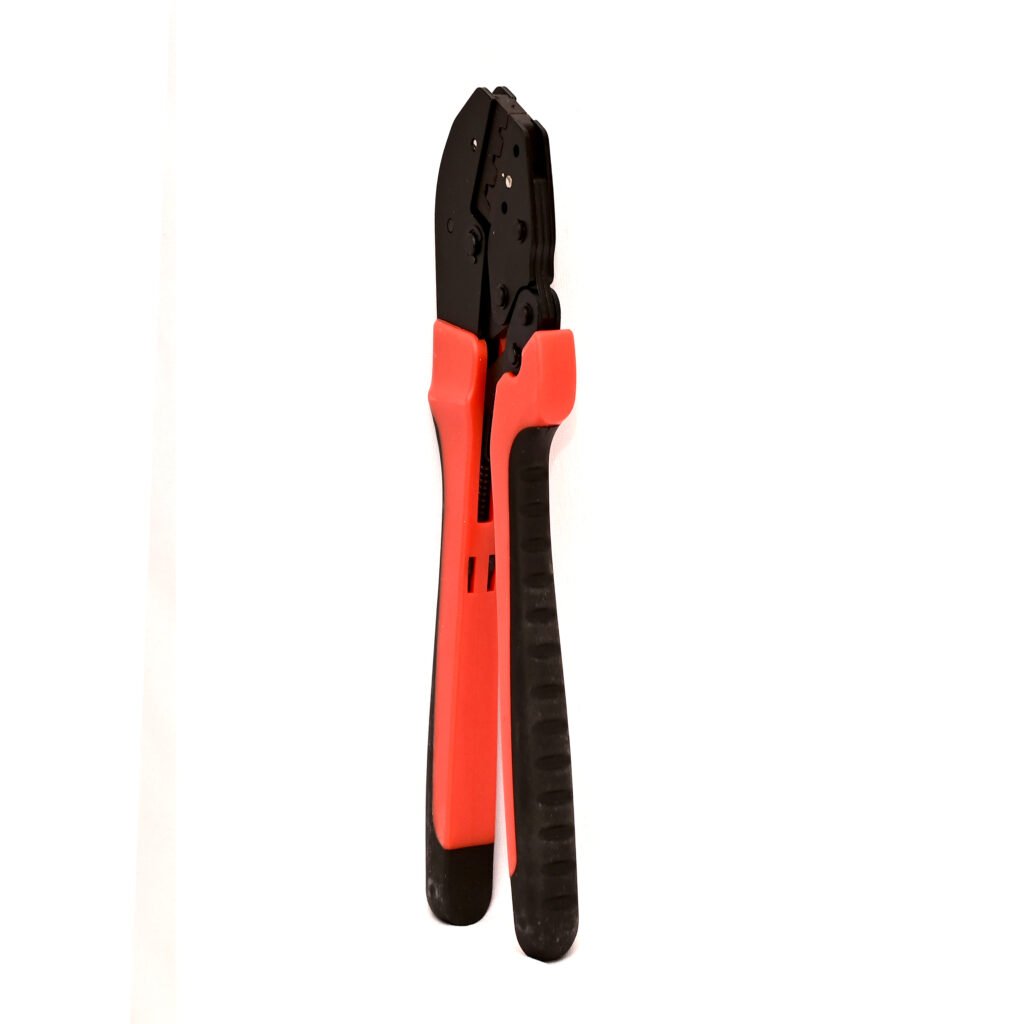

GT 9908

Manual Crimping Tool – GT- 9908  is  suitable  to  crimp Non-Insulated Lugs & Terminals  from  0.5 – 10.0 sq. mm . with pre-fitted  Die-set & Torque adjusted & TPR  handles .

 Ashwin crimping tool  GT 9908 is a specialized hand tool used to create secure connections between electrical wires and connectors by deforming the metal connector around the stripped wire, effectively “crimping” it onto the conductor, thus establishing a strong, reliable bond without the need for soldering; commonly used in applications like wiring electrical systems, network cabling,  .

Ashwintools GT 9908  is  a professional crimping Tool designed for  durable use with  consistency giving reliable terminals crimp joints , the frame has larger leverage due to bigger frame , which allows  increased leverage during the crimping procedure with Rachet mechanism , the Tool  comes with pre-fitted die set  .

The crimper has a built-in ratchet mechanism that allows you to use one hand to operate the tool while the other hand holds onto the cable. It only takes one squeeze of the handle for each crimp and it will automatically stop when the crimp is complete. This saves you time and energy when installing electrical wires or other parts in your panel building or other equipments for  electrical application .

Ashwin GT 9908  crimper is one of the best tools to crimp wires on Non-Insulated Lugs & Terminals . It can be used to crimp wires,  Crimping is normally performed by first inserting the terminal into the crimp tool. The terminal must be placed into the appropriately sized crimp barrel slot .  The wire is then inserted into the terminal with the end of the wire flush with the exit of the terminal to maximize cross-sectional contact. Finally, the handles of the crimp tool are used to compress and reshape the terminal until it is cold-welded onto the wire.

This Ashwintools  Manual  crimping tool has an ergonomic design which makes it easy to use even for beginners. The design is also very compact and lightweight so you can carry it around with you wherever you go. The crimper has been designed with durable construction so it will last for many years without any problems. The crimper is made from high quality steel material ( S 45 C ) with durable construction for long life use.

Specification:

• Model Number: GT- 9908
• Type of Product: Crimping Tool for Non-Insulated Lugs & Terminals
• Range:  0.50 —  10.0 mm2
• Output Force:  depends upon wire size used
• Weight:  0.540  kgs

            Size:  215 (L) mm
