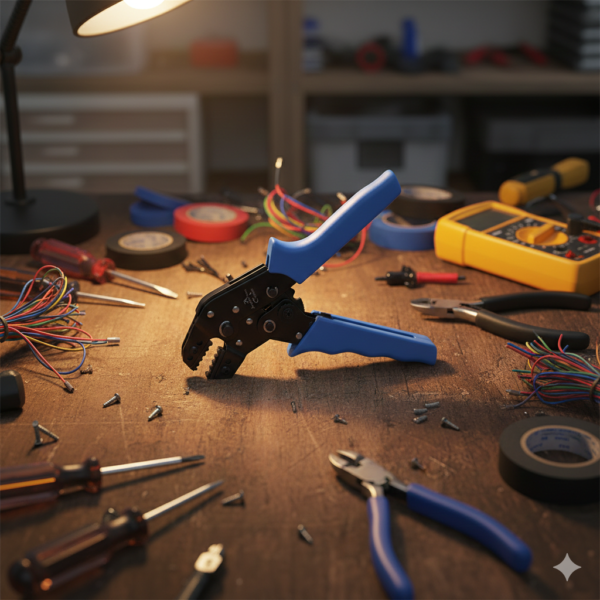

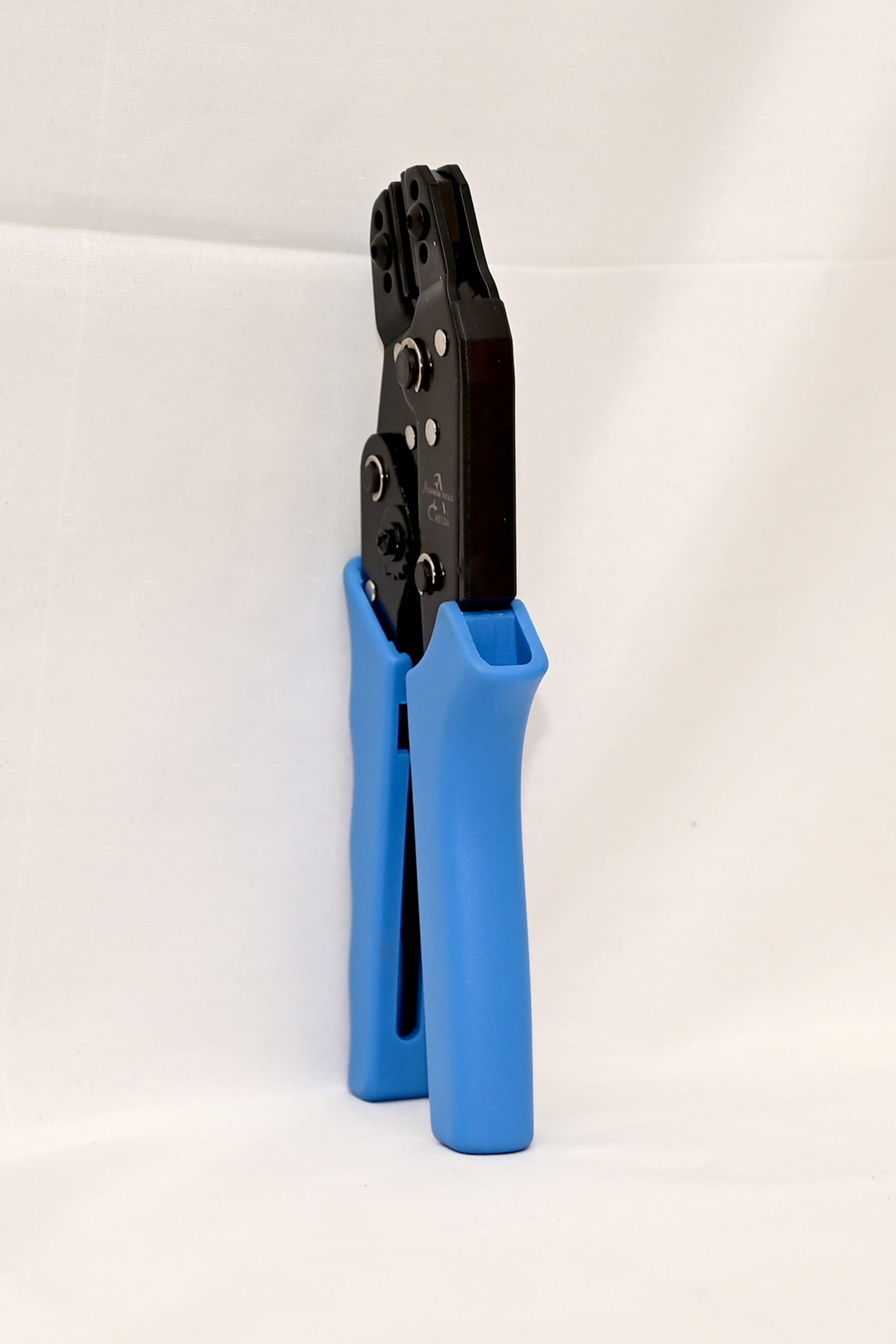

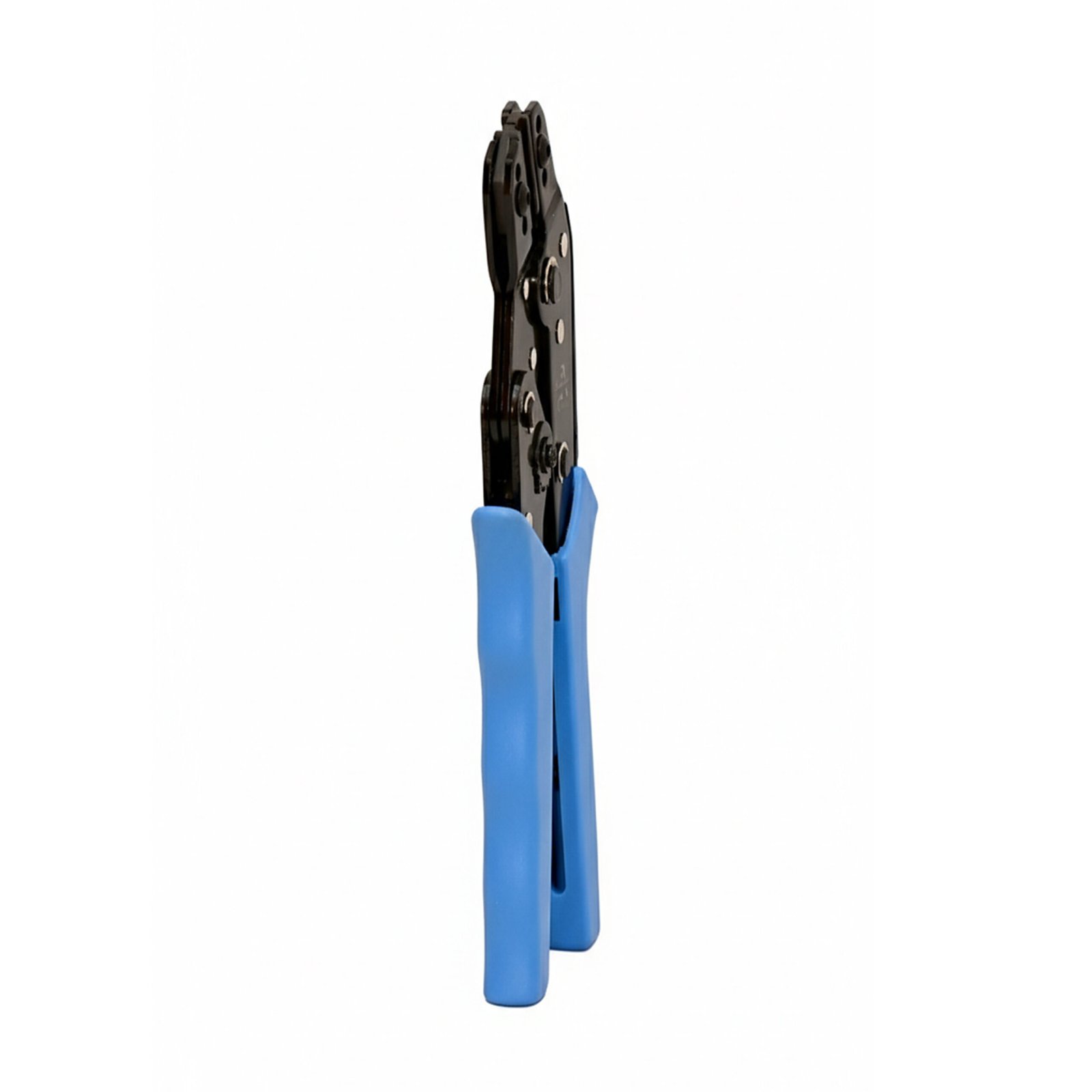

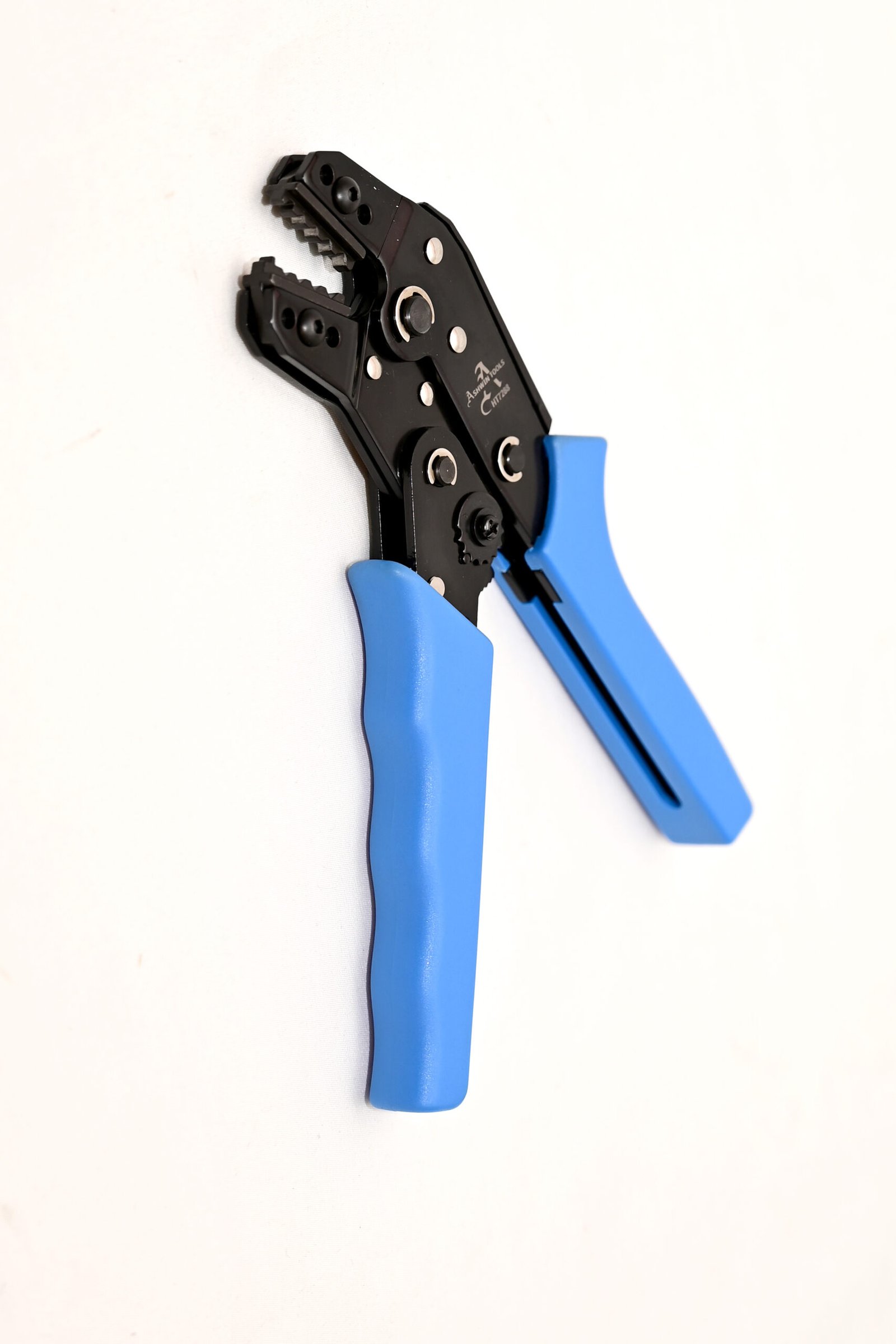

HT 7288

Manual Crimping Tool – HT- 7288 suitable  for  Machine Pin  Lugs from 0.5 – 4.00 sq. mm

Industrial grade Ashwin tools model  HT 7288  is  suitable  to  crimp heavy duty machine pin & deutsch / amphenol & other european MIL grade  connectors .

 Ashwin tools  HT 7288 is specially suitable for crimping  machine pin connectors , brass pin heavy duty connectors and

deutsch connectors and special heavy duty connectors ( HDC )  is  designed to provide reliable performance in harsh  conditions , such as vibration , risk of dust , water , high mechanical strain enviornment .

connections  with  ashwin tools  HT 7288  on deutsch or heavy duty connectors remain sealed up to a high degree of protection . attributed to high performance , the  connectors now have comprehensive applications in aerospace . defence , marine , industrial commercial transportation & other  EV vehicles .

 The crimper has a built-in ratchet mechanism that allows you to use one hand to operate the tool while the other hand holds onto the cable. It only takes one squeeze of the handle for each crimp and it will automatically stop when the crimp is complete. This saves your time and energy when installing electrical wires or other parts in your panel building or other equipments for  electrical application .

Ashwin HT 7288  crimper is one of the best tools to crimp wires on Brass connectors . It can be used to crimp wires, pins, terminals and fittings. Crimping is normally performed by first inserting the terminal into the crimp tool. The terminal must be placed into the appropriately sized crimp barrel slot .  The wire is then inserted into the terminal with the end of the wire flush with the exit of the terminal to maximize cross-sectional contact. Finally, the handles of the crimp tool are used to compress and reshape the terminal until it is cold-welded onto the wire.

This Ashwintools  Manual  crimping tool has an ergonomic design which makes it easy to use even for beginners. The design is also very compact and lightweight so you can carry it around with you wherever you go. The crimper has been designed with durable construction so it will last for many years without any problems. The crimper is made from high quality steel material with durable construction for long life use.

Specification:

• Model Number: HT- 7288
• Type of Product: Brass Pin Crimping Tool
• Range:  1.5 – 4.0 mm2
• Output Force:  depends upon wire size used
• Weight:  0.430  kgs
• Size:  175 (L) mm
