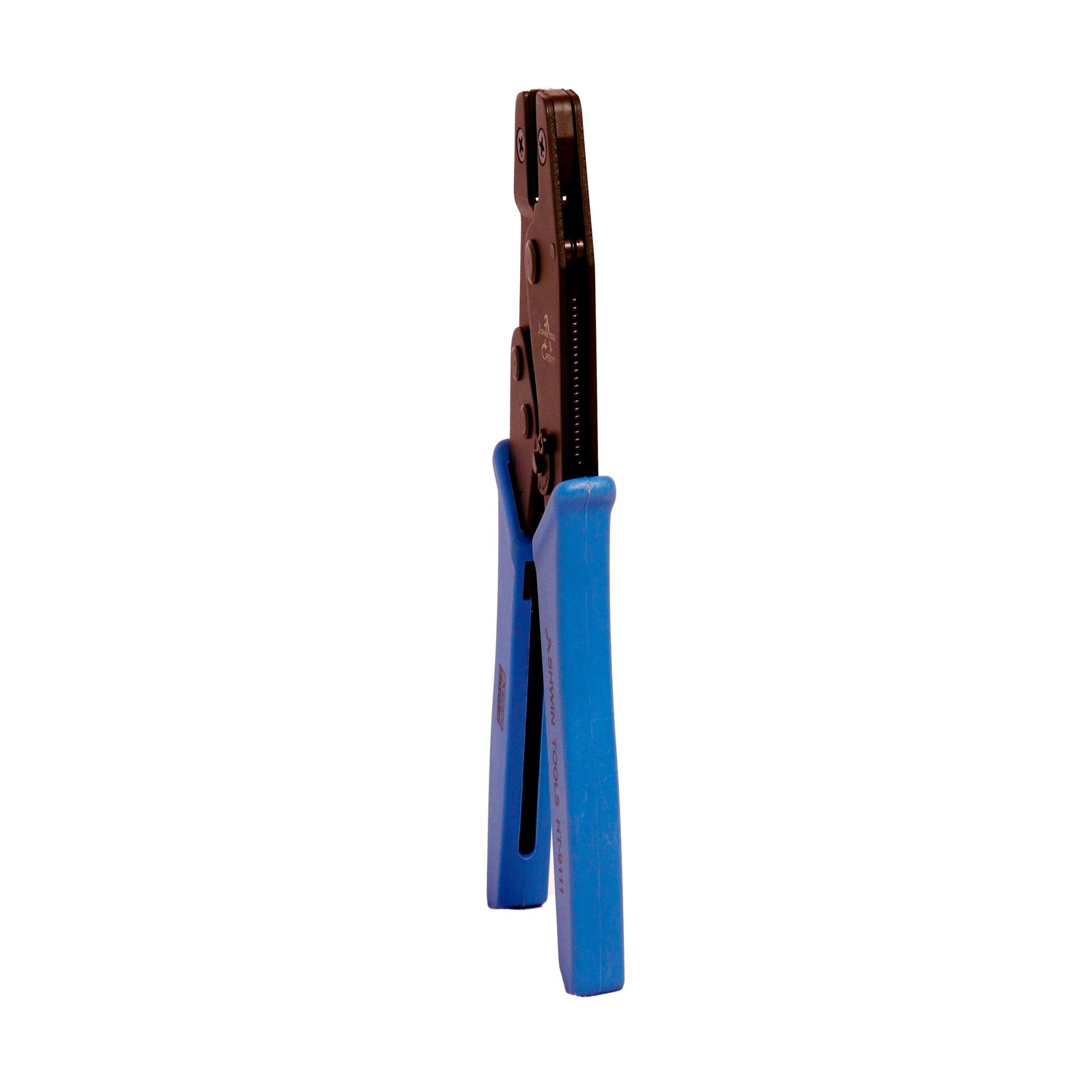

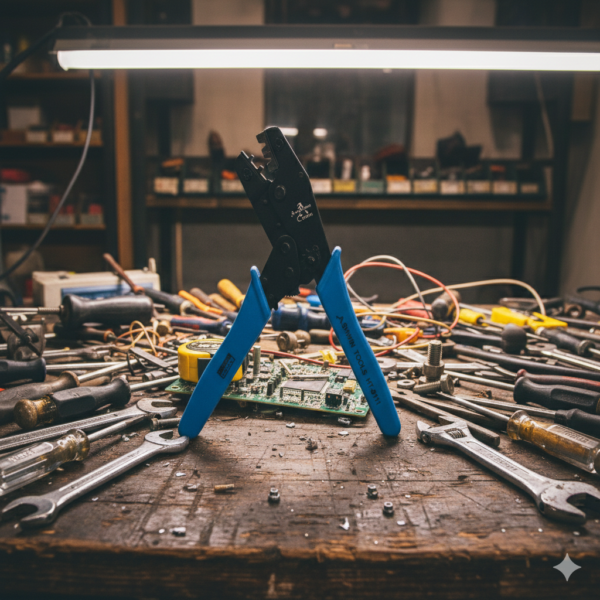

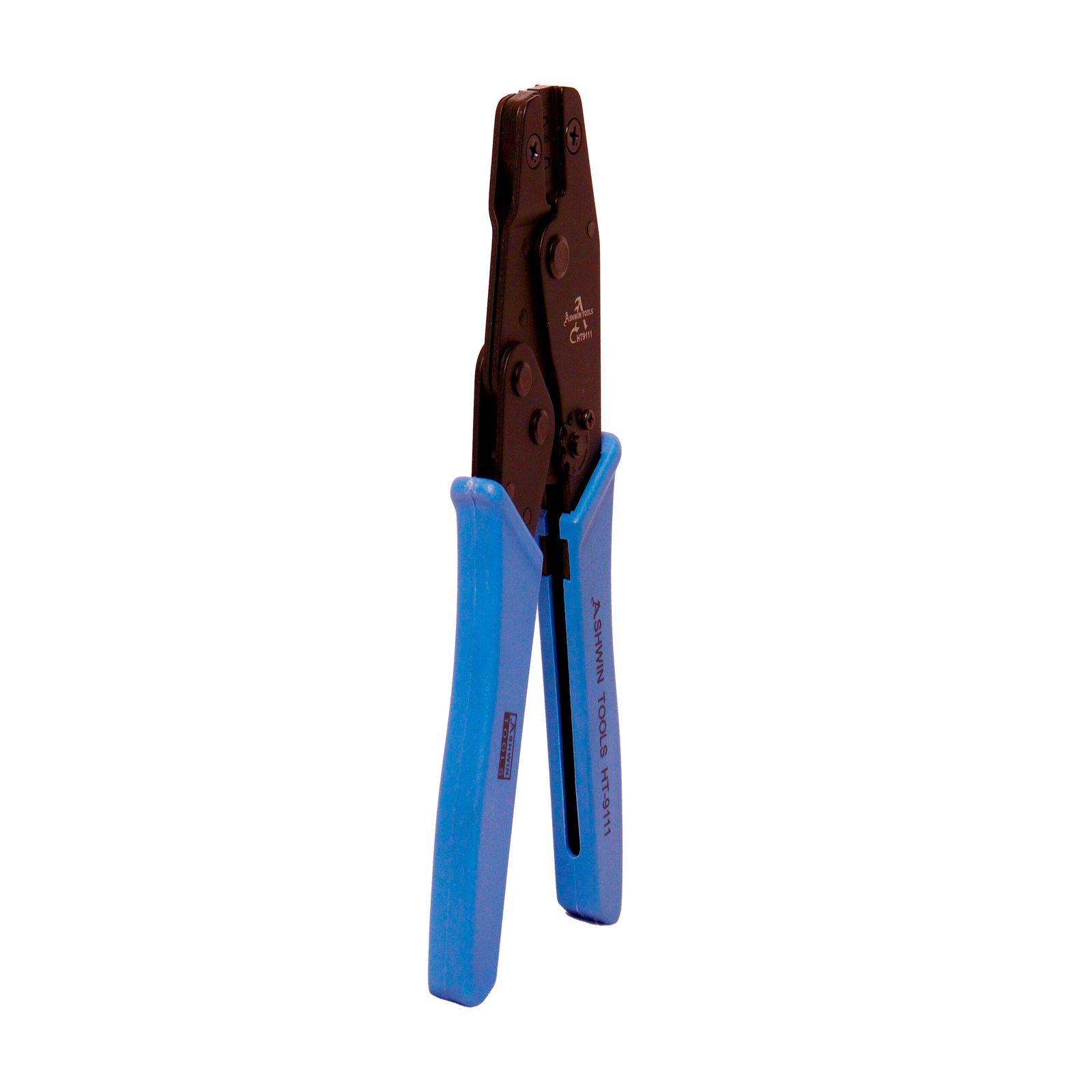

HT 9111

Manual Crimping Tool – HT- 9111 suitable to crimp Molex tab connectors for electronic & electrical application  for 2.54 & 3.96 Pitch .

 Ashwin crimping tool  HT 9111 is a specialized hand tool used to create secure connections between electrical wires and connectors by deforming the metal connector around the stripped wire, effectively “crimping” it onto the conductor, thus establishing a strong, reliable bond without the need for soldering; commonly used in applications like wiring harness electrical systems, network cabling, and vehicle harness cable application.

Ashwintools HT 9111  is  a professional crimping Tool designed for  durable use with  consistency giving reliable terminals crimp joints , the frame has larger leverage due to bigger frame , which allows  increased leverage during the crimping procedure with Rachet mechanism , the Tool  comes with  interchangeable die set  .

The crimper has a built-in ratchet mechanism that allows you to use one hand to operate the tool while the other hand holds onto the cable. It only takes one squeeze of the handle for each crimp and it will automatically stop when the crimp is complete. This saves you time and energy when installing electrical wires or other parts in your panel building or other equipments for  electrical application .

This Ashwintools  Manual  crimping tool has an ergonomic design which makes it easy to use even for beginners. The design is also very compact and lightweight so you can carry it around with you wherever you go. The crimper has been designed with durable construction so it will last for many years without any problems. The crimper is made from high quality steel material with durable construction for long life use.

Specification:

• Model Number: HT- 9111
• Type of Product: Molex Tab connector Crimping Tool
• Range:  AWG 28 – 22  ,  DIN : 0.08 – 0.2 sq. mm  MOLEX 2.54 mm pich
•               AWG  22 – 18   DIN : 0.3 – 0.8 sq. mm    MOLEX 3.96 mm Pitch
• Output Force:  depends upon wire size used
• Weight:  0.400  kgs
• Size:  210 (L) mm
