EV 5012M

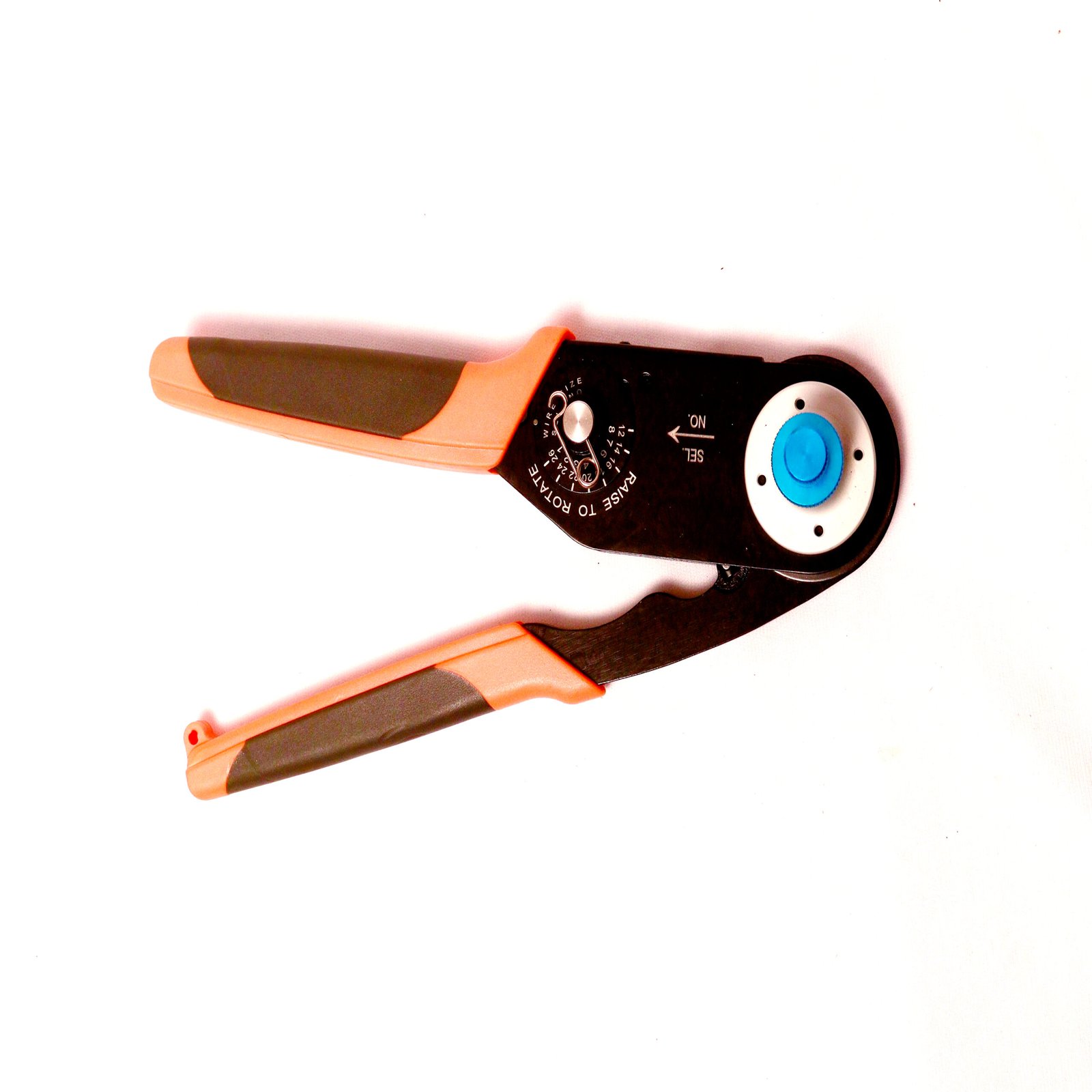

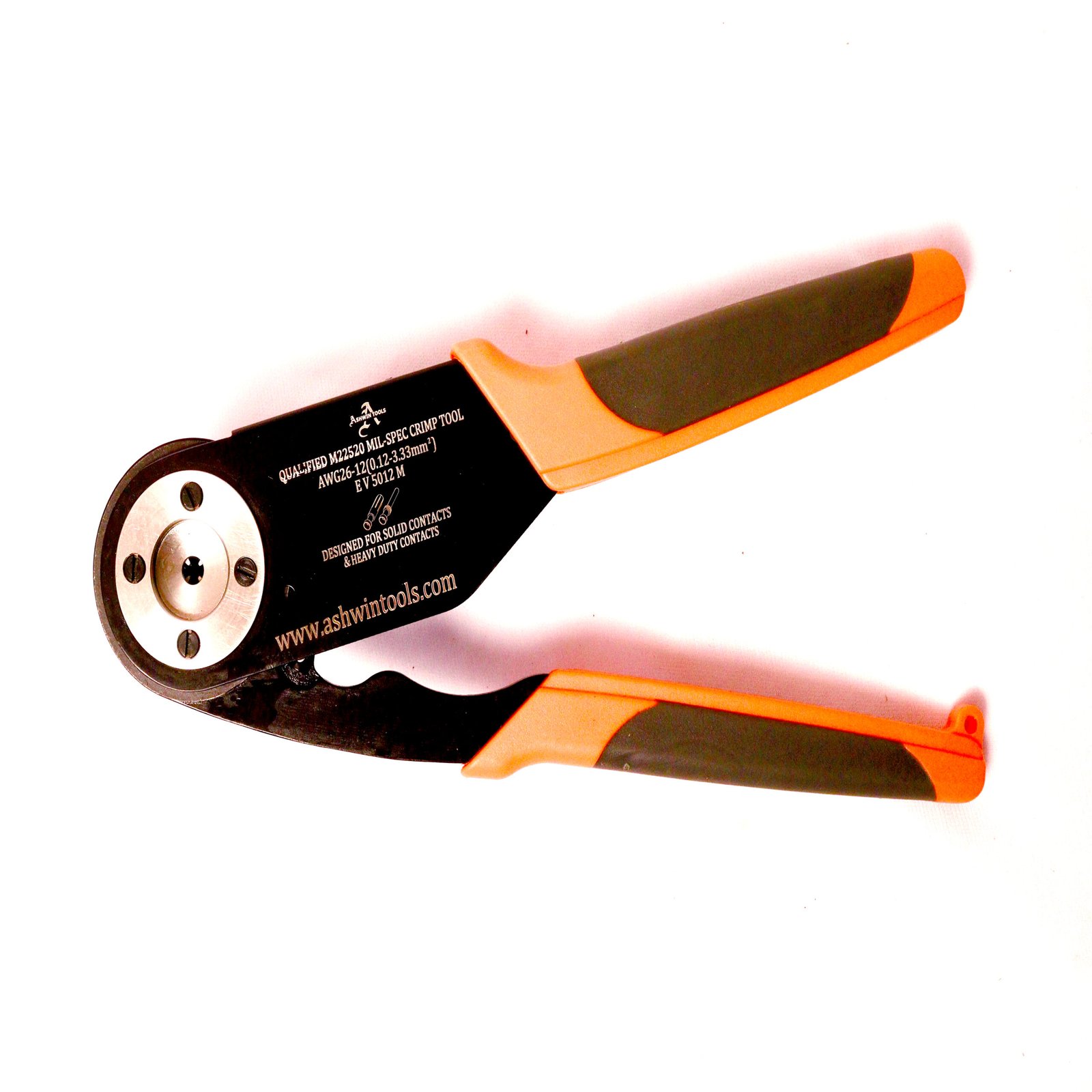

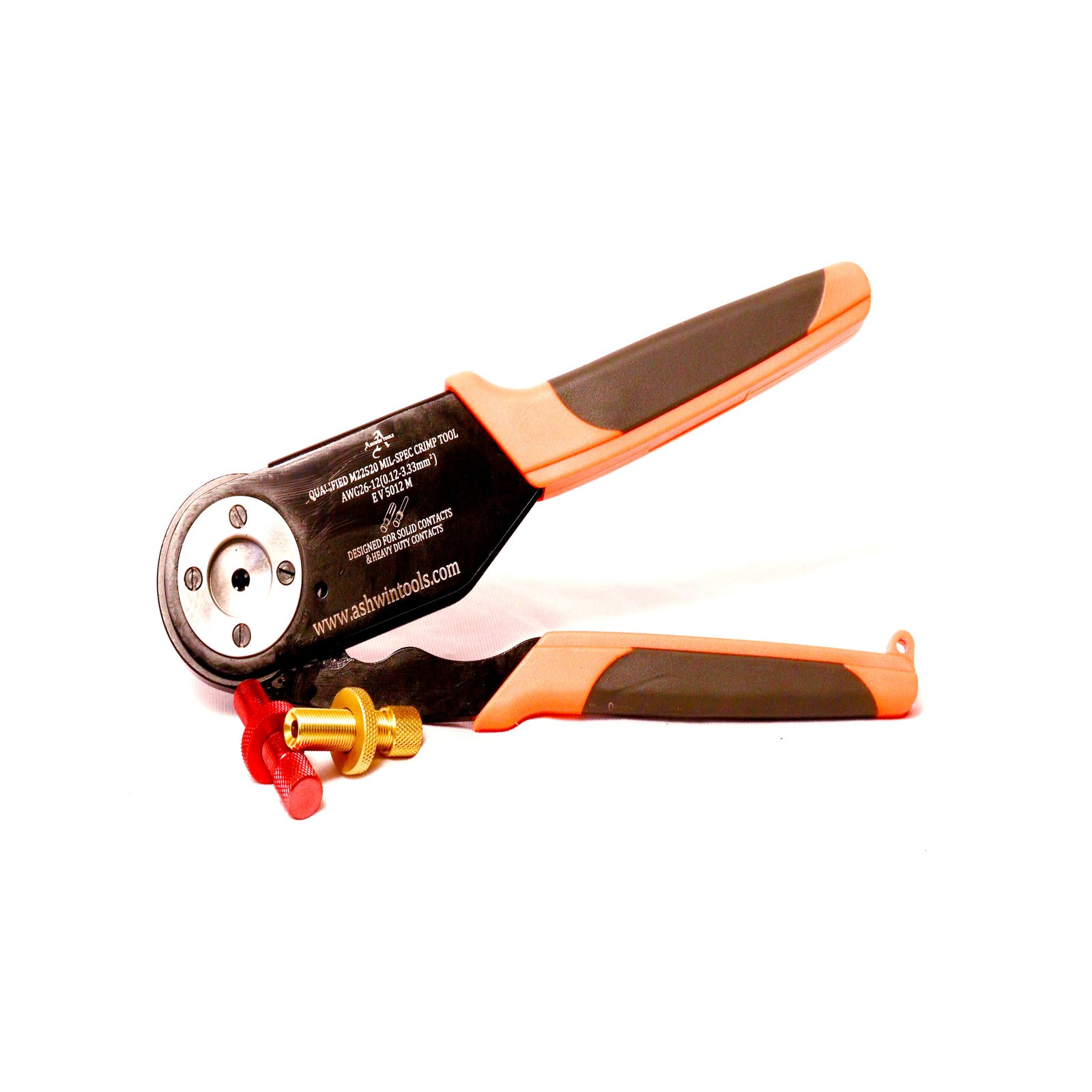

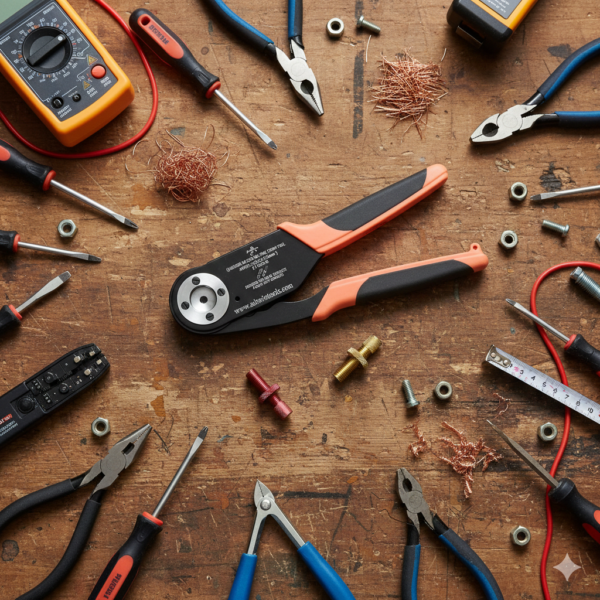

Manual Crimping Tool – EV 5012 M

INDUSTRIAL GRADE ASHWIN TOOLS MODEL  EV 5012 M  IS  SUITABLE  TO  CRIMP HEAVY DUTY MACHINE PIN & DEUTSCH / AMPLENOL & OTHER EUROPEAN MIL GRADE  CONNECTORS .

 ASHWIN TOOLS  EV SERIES ARE SPECIALLY SUITABLE FOR CRIMPING  MACHINE PIN CONNECTORS , BRASS PIN HEAVY DUTY CONNECTORS AND

DEUTSCH CONNECTORS AND SPECIAL HEAVY DUTY CONNECTORS ( HDC )  IS  DESIGNED TO PROVIDE RELIABLE PERFORMANCE IN HARSH  CONDITIONS , SUCH AS VIBRATION , RISK OF DUST , WATER , HIGH MECHANICAL STRAIN ENVIORNMENT .

CONNECTIONS  WITH  ASHWIN TOOLS  EVE SERIES  ON DEUTSCH OR HEAVY DUTY CONNECTORS REMAIN SEALED UP TO A HIGH DEGREE OF PROTECTION . ATTRIBUTED TO HIGH PERFORMANCE , THE  CONNECTORS NOW HAVE COMPREHENSIVE APPLICATIONS IN AEROSPACE . DEFENCE , MARINE , INDUSTRIAL COMMERCIAL TRANSPORTATION & OTHER  EV VEHICLES .

DIFFERENT  FROM OLD  STYLE CRIMPING ASHWIN TOOLS EV SERIES  PERFORMANCE AND CONNECTIONS OF DEUTSCH AND HEAVY DUTY CONNECTORS REQUIRE HIGH – PRECISION COMPRESSION WITH TIGHT TOLERANCE , USUALLY ITS 4 INDENT , 8 COMPRESSION . ASHWINTOOLS  SPENTS  YEARS SOURCING THESE INNOVATIVE TOOLS TO MEET  THE MARKET  DEMAND IN THIS SEGMENT .

FEATURES OF ASHWIN EV SERIES TOOLS  ::

1. UPGRADED STRUCTURE ENSURES OPTIMAL FORCE TRANSMISSION FOR EFFORTLESS OPERATIONS .
2. PRECISE JAWS DESIGN COMPLAINT MILITARY SPECS , MAKES PERFECT AND STANDARD CRIMPING EVERYTIME WITHOUT WASTING TIME ON TEST & TRIAL .
3. MADE OF PREMIUM STEEL WITH UNIQUE SURFACE TREATMENT , ACHIEVE HIGH DEGREE OF DURABILITY AND RESISTANCE TO WATER , CORROSION & DUST  WITH 100%  ACCURACY & DURABILITY .
4. THE PRECISION RACHET CONTROLS THE MOVEMENT OF THE TOOL IN BOTH DIRECTIONS OF HANDLE MOVEMENT . SELECTOR KNOB ON TOOL FRAME ENABLES TO CONTROL THE CRIMP DEPTH . .

Specification:

• Model Number: EV 5012 M
• Type of Product: Crimping Tool FOR MACHINE PIN / BRASS PIN & DT                  CONNECTORS
• Range:  AWG 12 – AWG 26 ( 0.128 – 3.33 SQ. MM )
• Output Force:  depends upon wire size used
• Weight:  0.700  kgs
• Size:  240 (L) mm
