HT 3350

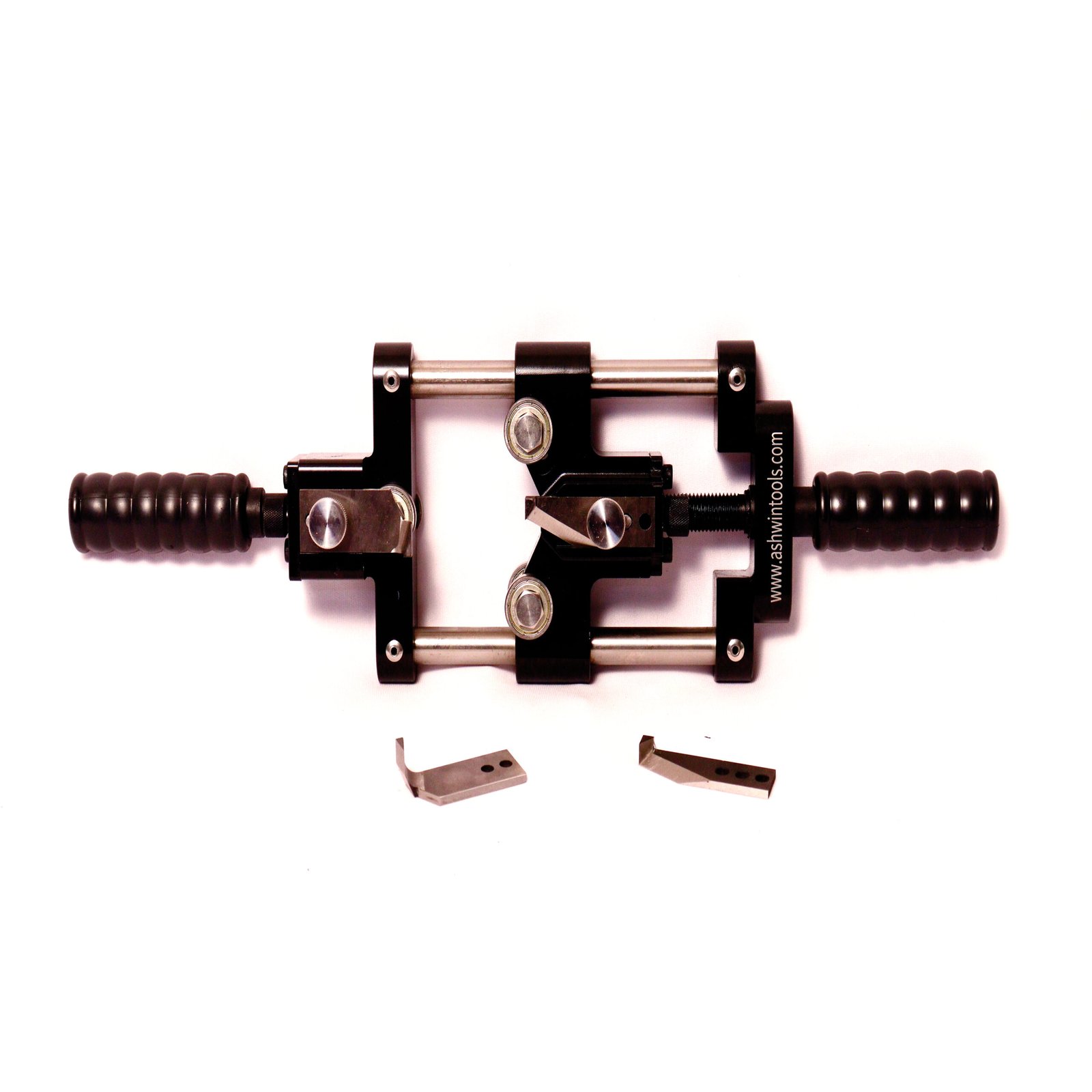

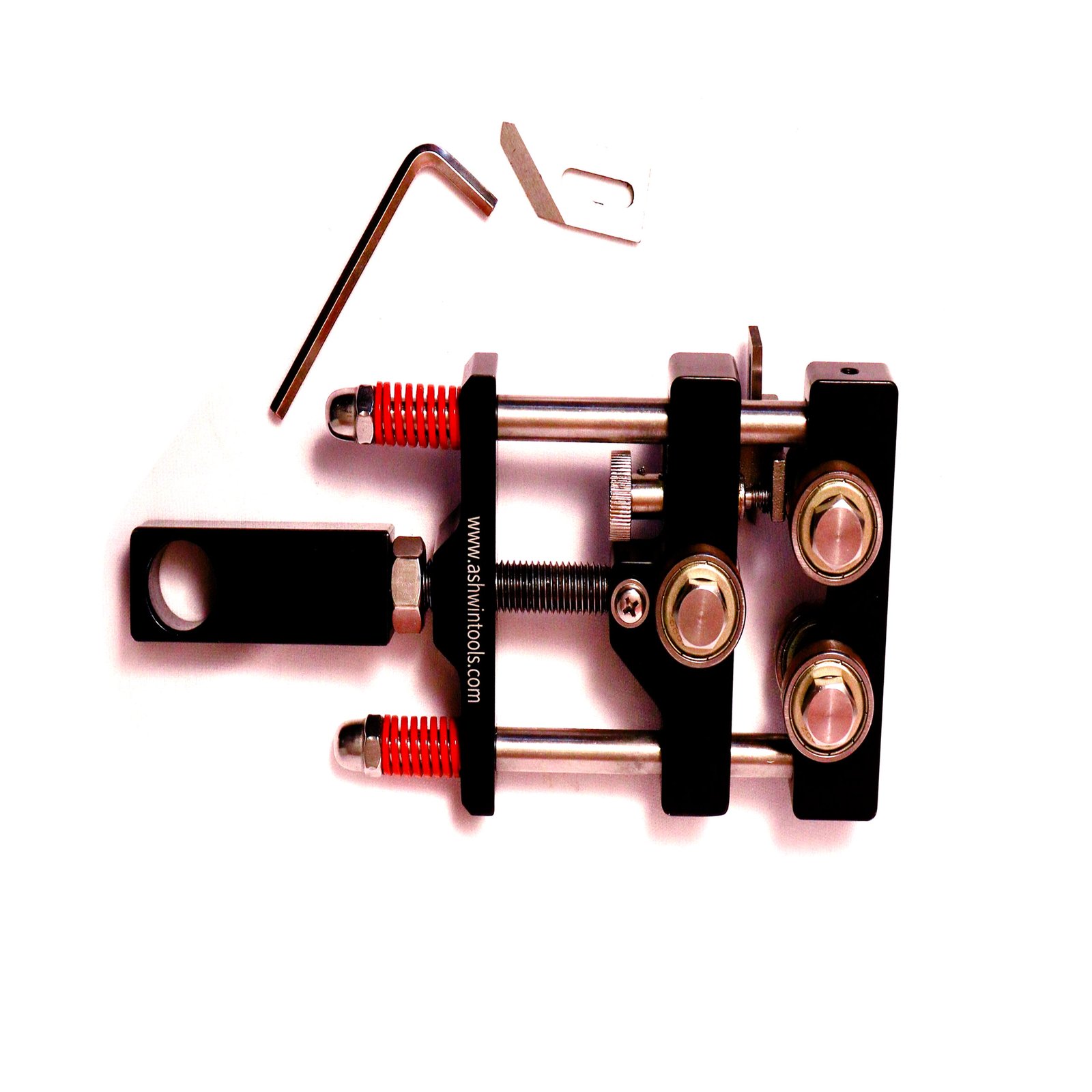

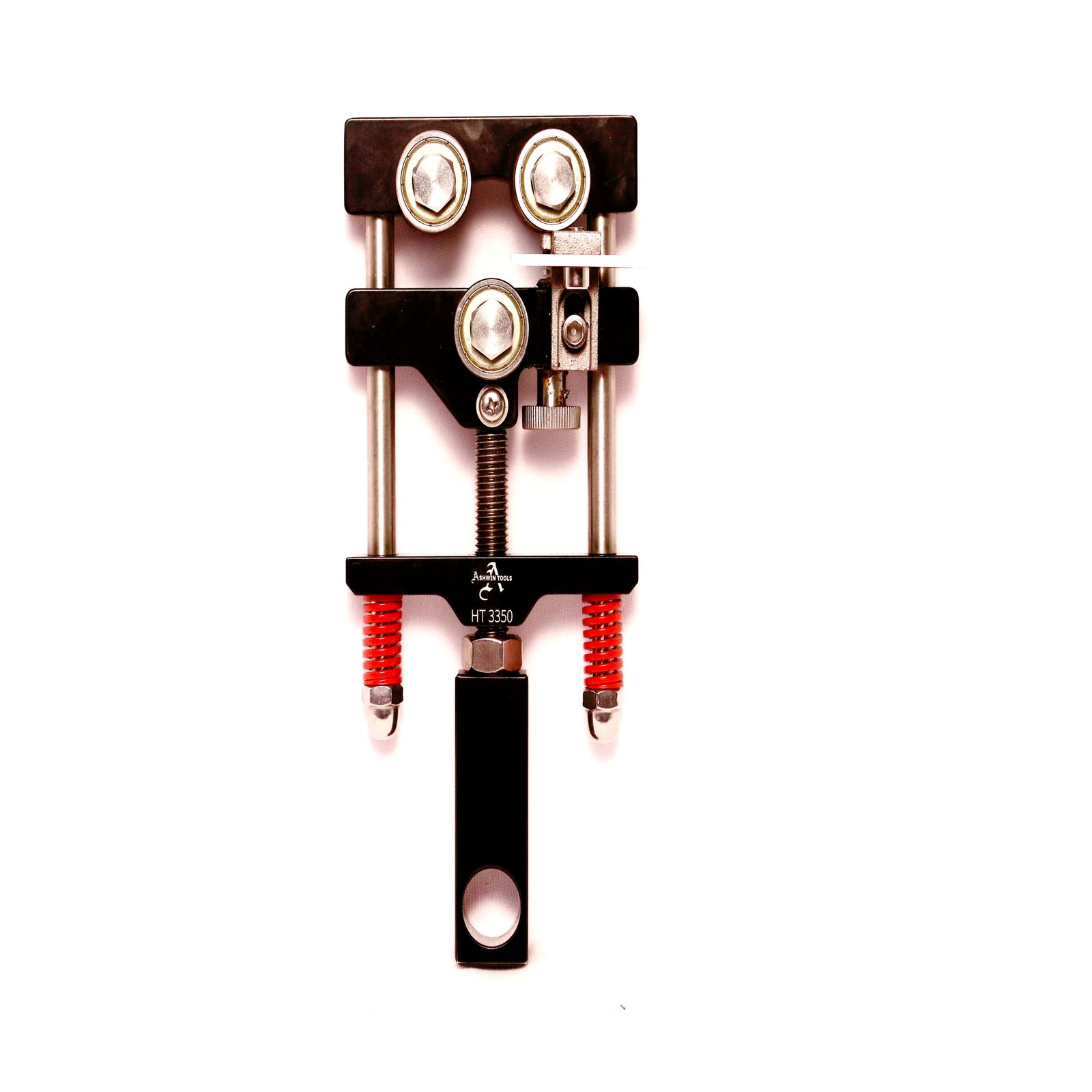

ASHWIN Manual Semi conductor Insulation remover   HT 3350  is a  precision engineering marvel , made with rotating mechanism and durable Blades  suitable for removing insulation layers from XLPE & Semi-conductor cables from 20 — 45 mm OD .

Made from various industrial processes , the microstructure of steel alters from austenite to martensite in order to improve its hardness and wear resistance , however the degree of transition in  this process will directly influence the uniformity of hardness and stability of dimensions. Compared with traditional heat treatment technique , our technology is able to alter steel’s microstructure as much as possible , eliminates internal stress minimise hardness error, which altogether enhances and prolongs product lifetime.

Our CNC processing technology is the most modern manufacturing technique as it highly enhances machining accuracy and production efficiency , Selection of right grade of steel and adopting die forging technics for critical raw material in order to achieve strict Quality standards and product Quality with world class heat treatment technology to produce innovative products for Electrical & Power industry .

Specification:

• Model Number: HT 3350
• Type of Product: Insulation Remover from Semiconductor Cable & XLPE cables
• Range:  MV & HV Cables 20 —  45 mm OD , Depth :: 8 mm
• Output Force:  depends upon wire size used
• Weight:  0.950  kgs
• Size:  250  mm
