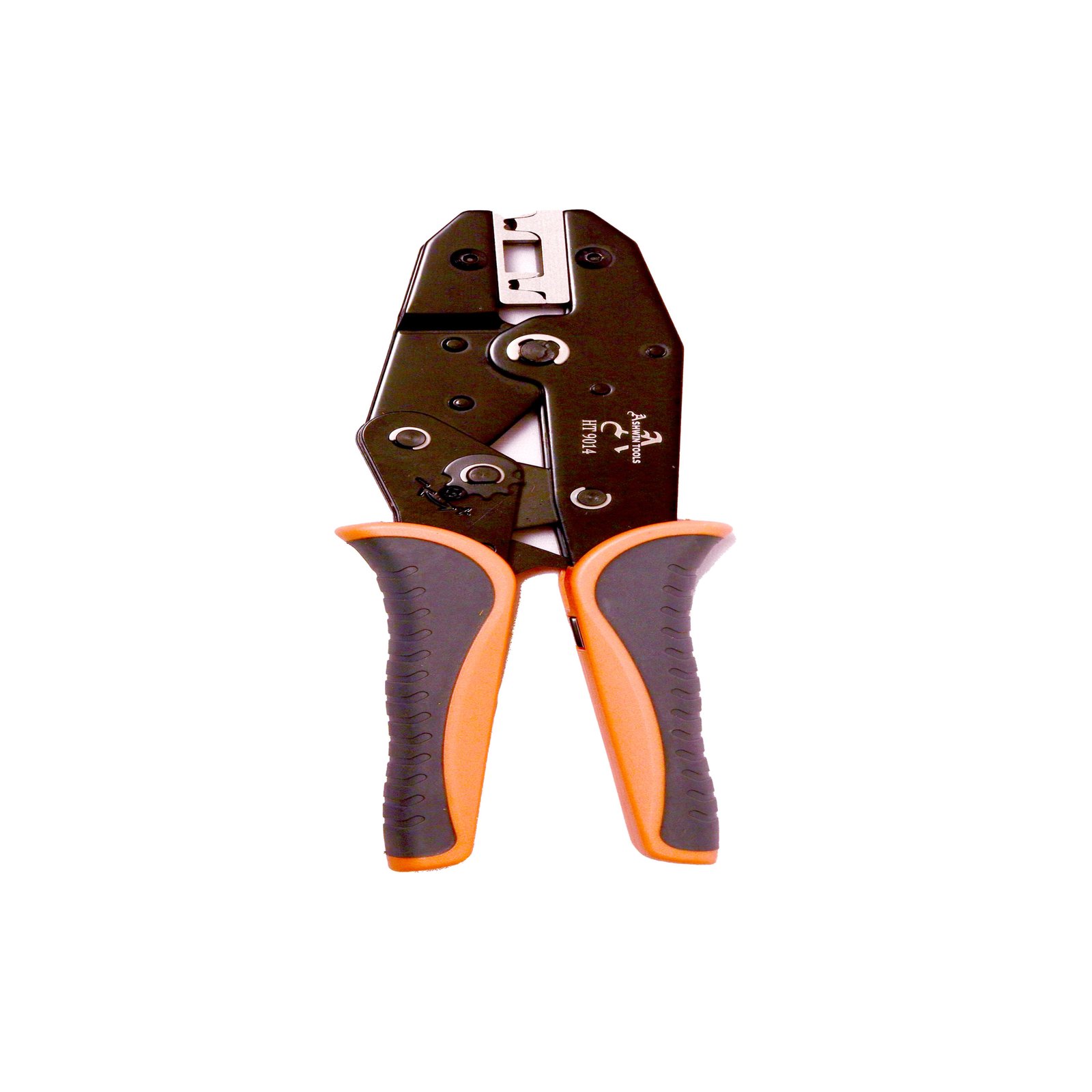

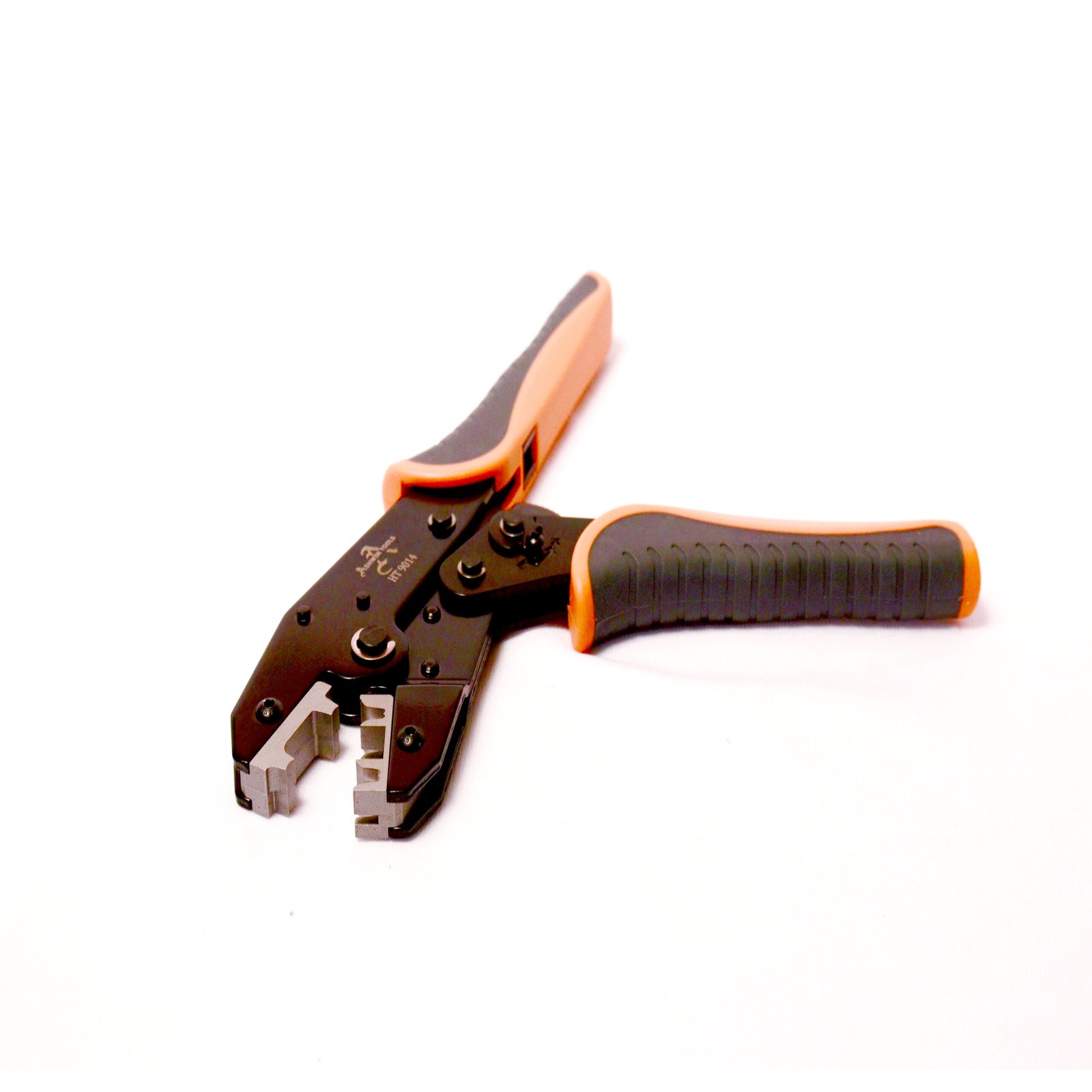

HT 9014

Manual Crimping Tool – HT- 9014 is a 205 mm tool with large handles for perfect crimp force application suitable for Flag type non-insulated lugs from 0.5 – 4.00 sq. mm .  Double jaw crimping technology for 100%  full proof crimping .

 Ashwin crimping tool  HT 9014 is a specialized hand tool used to create secure connections between electrical wires and connectors by deforming the metal connector around the stripped wire, effectively “crimping” it onto the terminal , thus establishing a strong, reliable bond without the need for soldering; commonly used in applications like wiring electrical systems, network cabling, and Air conditioning cable installations .

Ashwintools HT 9014  is  a professional crimping Tool designed for  durable use with  consistency giving reliable terminals crimp joints , the frame has larger leverage due to bigger frame , which allows  increased leverage during the crimping procedure with Rachet mechanism , the Tool  comes with  interchangeable die set  for 90 degree angle connector .

The crimper has a built-in ratchet mechanism that allows you to use one hand to operate the tool while the other hand holds onto the cable. It only takes one squeeze of the handle for each crimp and it will automatically stop when the crimp is complete. This saves you time and energy when installing electrical wires or other parts in your Air conditioning  building or other equipments for Air conditioning  electrical application .

Ashwin HT 9014  crimper is one of the best tools to crimp wires on Flay type Non-insulated lugs . Crimping is normally performed by first inserting the terminal into the crimp tool. The terminal must be placed into the appropriately sized crimp barrel slot .  The wire is then inserted into the terminal with the end of the wire flush with the exit of the terminal to maximize cross-sectional contact. Finally, the handles of the crimp tool are used to compress and reshape the terminal until it is cold-welded onto the wire.

This Ashwintools  Manual  crimping tool has an ergonomic design which makes it easy to use even for beginners. The design is also very compact and lightweight so you can carry it around with you wherever you go. The crimper has been designed with durable construction so it will last for many years without any problems. The crimper is made from high quality steel material with durable construction for long life use.

Specification:

• Model Number: HT- 9014
• Type of Product: Flag Type Non-Insulated Crimping Tool ( Right angle 90 degree connector )
• Range:  0.5 / 2.5 / 4.0 mm2
• Output Force:  depends upon wire size used
• Weight:  0.430  kgs

Size:  205 (L) mm
